Description

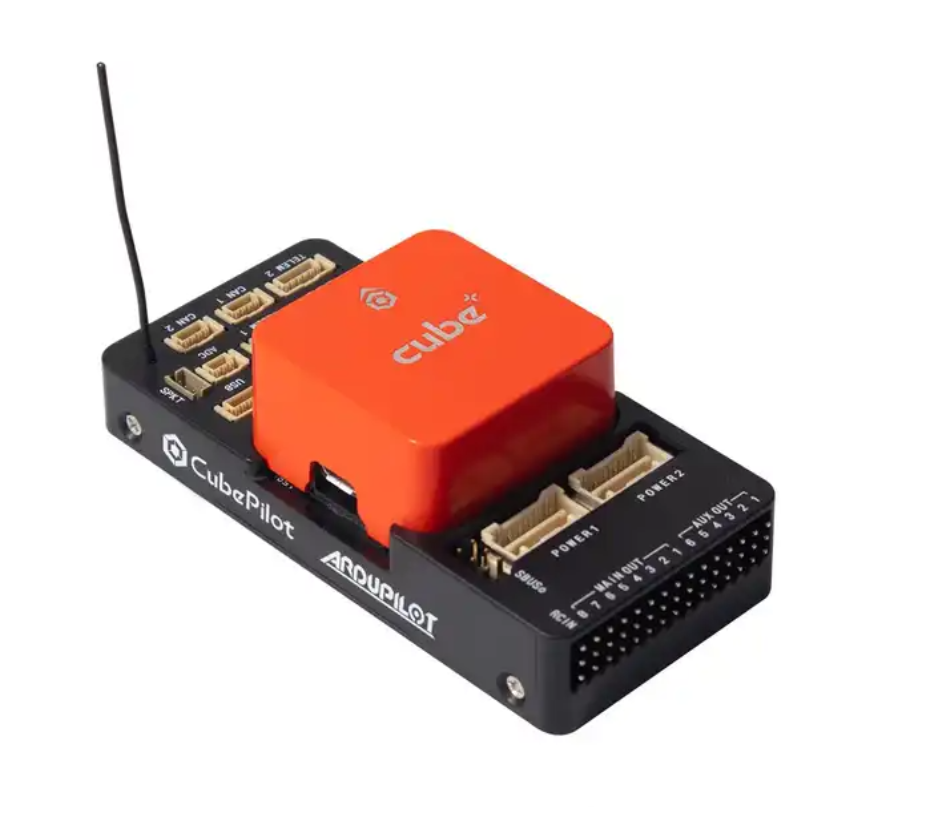

This is an updated version of the Cube Orang original carrier board, its overall footprint is identical to the previous versions and main changes compared to original carrier are as follows:
- Integration of uAvionix ADS-B IN Receiver
- Built-In ADS-B Antenna
- Removal of Intel Edison Bay and Debug USB Ports
- New Product Livery
- Correct labelling Of CAN Ports
uAvionix ADS-B Receiver:
The Cube Orange Standard Set + ADS-B flight controller comes with an H7 processor, features a 1,090 MHz ADS-B receiver from Avionic, automatically avoids aircraft, and Is integrated into the new ADS-B carrier board.
Through the parameter setting, the autopilot can optionally set up the cube to allow the vehicle to automatically avoid an aircraft that is detected in an exclusion zone set by the pilot.
Specification:
| Main Processor | STM32H757 Dual Core M7 + M4 |
| Coprocessor | STM32Fl00 |
| Supported RC signals | PPM/SBUS/DSM |
| Power redundancy | Triple redundancy |
| Sensors | Triple IMU System |
| Sensors details | IMUl(lsolated) ICM42688 IMU2(1solated) ICM20948 or ICM42688 IMU3(Fixed) ICM20649 or ICM45686 MS5611x 2(Baro) |
| Supported firmware Ardupilot | PX4, and Hionos 00-178C |
| Supported vehicle type | Fixed-wing plane Multicopters Helicopter VTOL-plane Rover/boat/submarine |
| Weight (gm) | 73 |
| Chassis Material | CNCAluminum Alloy(cube) +ABS Molding(Carrier Board) |
| Cube Size (mm) | 38.4 x 38.4 x 22 |
| Carrier Board Size (mm) | 94 x 44.3 x 7.3 |
| Operating Temperature | -10+55° IMU with temperature control |
| PWM I/Os | 14 |
| GPS/Serial interfaces | 4 |
| Debug interface | 2 |
| I2C interface | 2 |
| CAN FD interface | 2 |

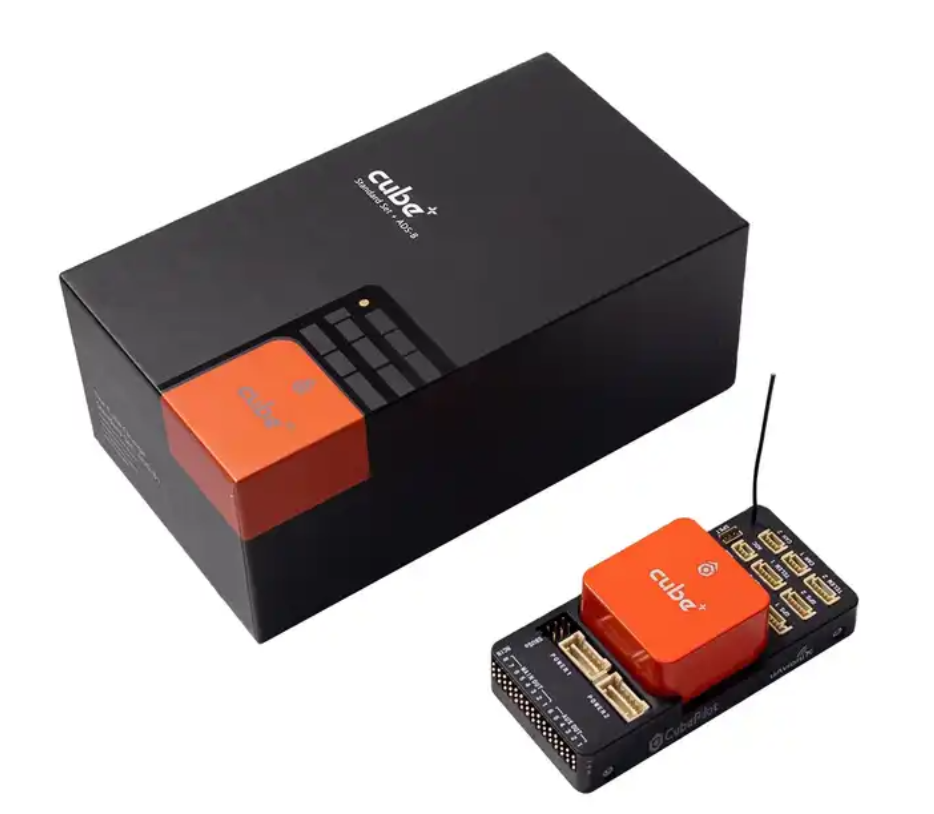

Package Includes:
- 1 x Cube Orange+ set
- 1 x Power Brick Mini
- 1 x Buzzer Cable
- 2 x CAN Cable
- 2 x I2C Cable
- 1 x Power Brick Mini Cable
- 1 x GPS1 GH Cable
- 1 x Micro USB cable
- 1 x I2C Board
- 4 x Screws
- 3 x 3M Sticker(L)
- 2 x 3M Sticker(M)
- 4 x 3M Sticker(S)
